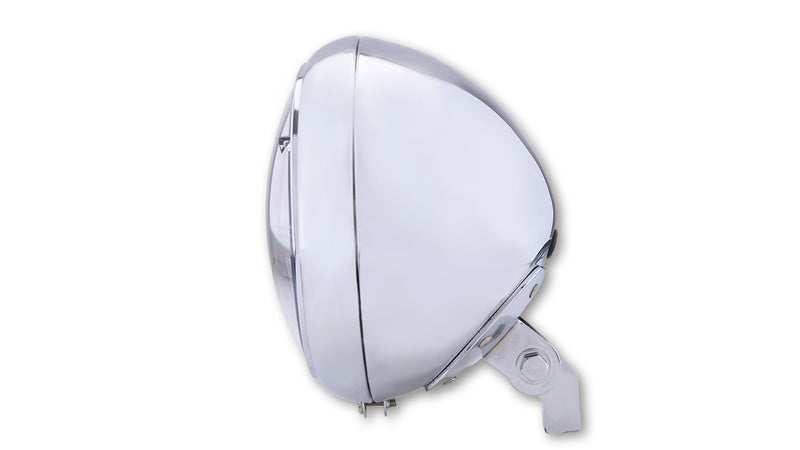

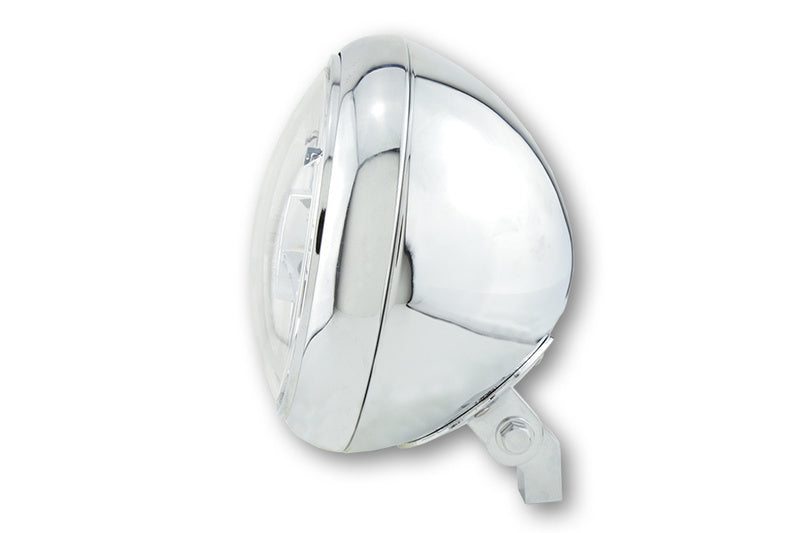

HIGHSIDER 7 Inch LED Head Light Yuma 2 Type3, Chrome

HIGHSIDER 7 inch LED headlight YUMA 2 TYPE 3, lower mounting, E-approved. Available in various colours.

Power LED headlight with clear glass, high beam, low beam and parking light function. The special feature of the bulky 7-inch main headlight is the LED lighting technology inside it and the bottom mounting, which allows the headlight to be mounted closer or further away from the steering head by turning it upside down. The upper section of the headlight illuminates the low beam and when the high beam is switched on, the lower section also illuminates. The Yuma 2 TYPE 3 also has a chrome-plated, asymmetrical reflector - only approved for right-hand traffic - E-approved.

Our highlights - give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Features:

• Bulb: LED
• High beam, low beam and parking light function
• Glass: clear
• Reflector: asymmetrical
• Housing: metal
• Mounting point: bottom

Dimensions:

• Ø housing: 210 mm
• Ø spotlight insert: 178 mm
• Depth: 150 mm
• Thread: M8

Connections:

• White cable = low beam (+)
• Blue cable = high beam (+)
• Green cable = ground (-)
• Grey extra cable = LED position light (+)
• Black extra cable = ground (-)

Scope of delivery: 1 piece
