HIGHSIDER 7 Inch Voyage HD-Style LED Head Light, Bottom Mounting - 1108617002

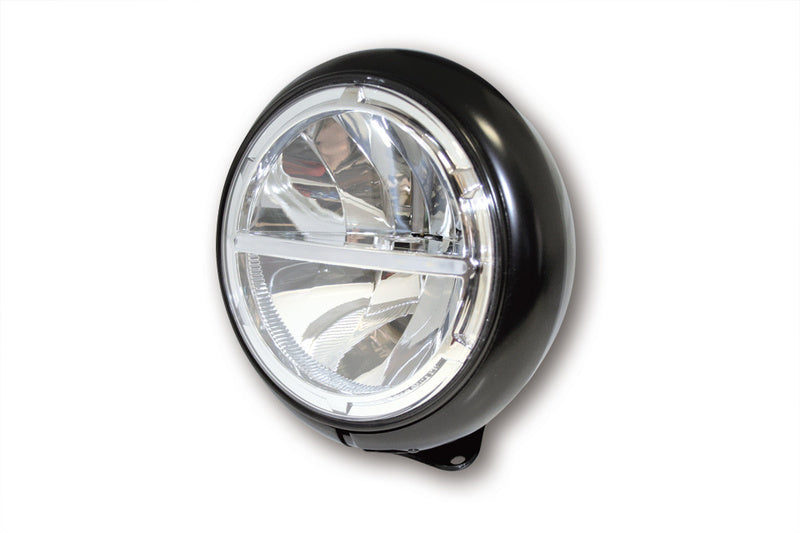

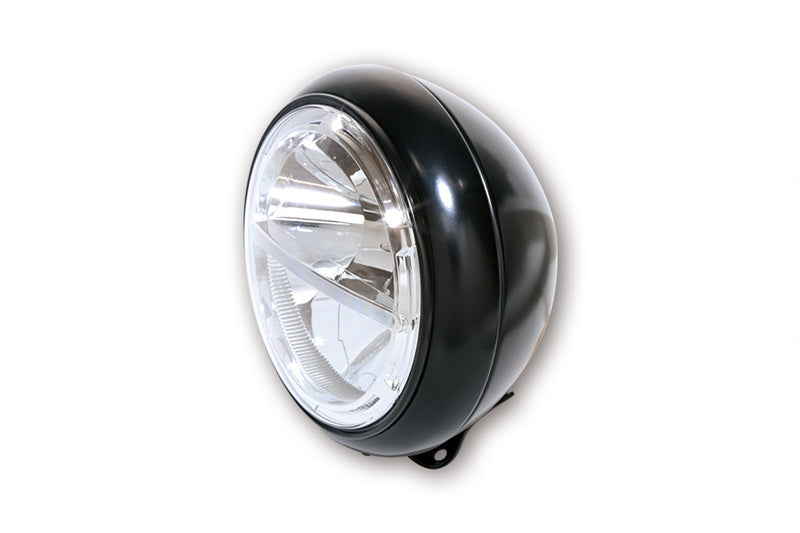

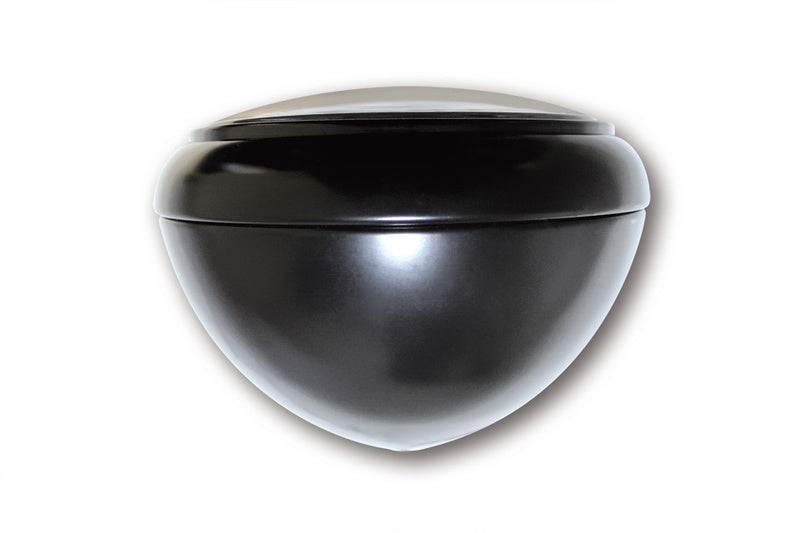

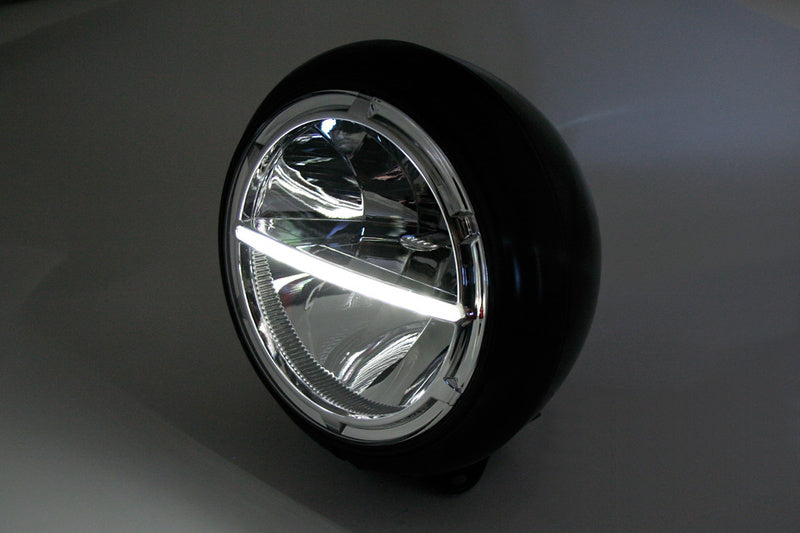

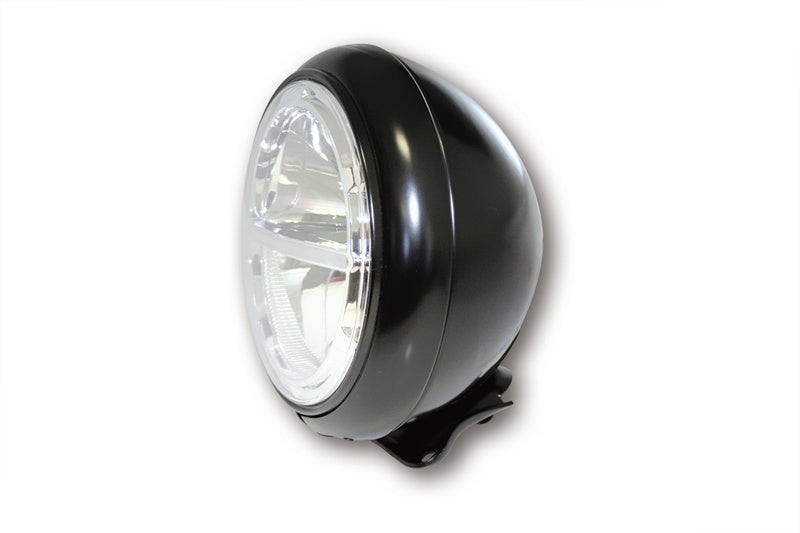

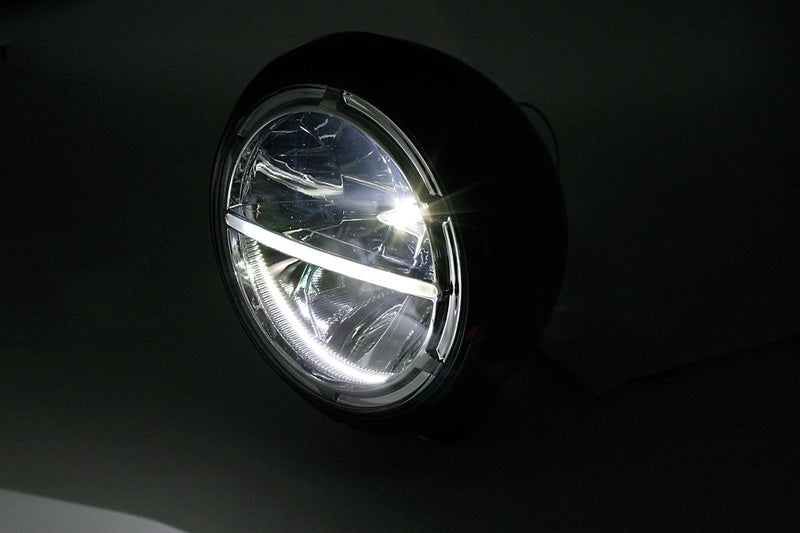

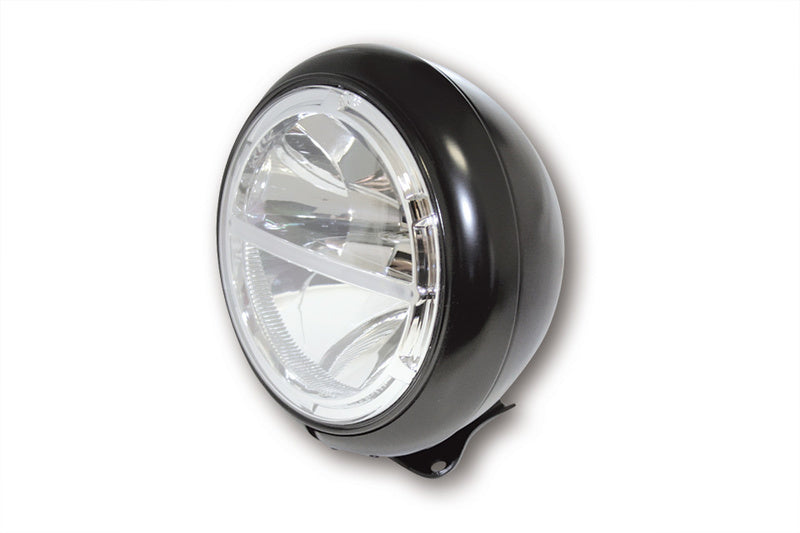

HIGHSIDER 7-inch LED headlight VOYAGE HD-STYLE for bottom mounting Innovative power LED headlight in a purist design with parking light function. The oval metal housing is painted black or chrome-plated, the insert is chrome-plated. The LED technology and the used reflector produce a symmetrical, bright light and provide an optimal perception of bikers by other road users, E-examined.

Our highlights give your bike an unmistakable style! The fancy design and perfect technology of the HIGHSIDER headlight series make it a highlight!

Dimensions:

• Enclosure diameter: 220 mm
• Headlight insert diameter: 178 mm
• Depth: 155 mm

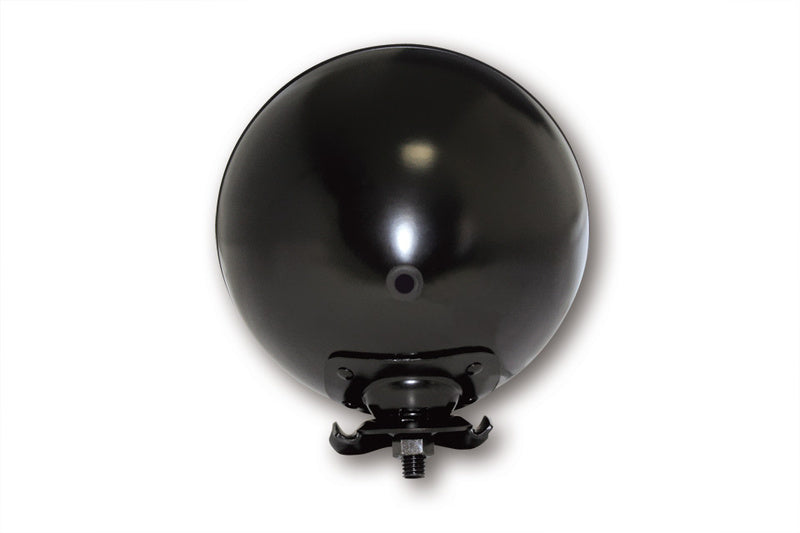

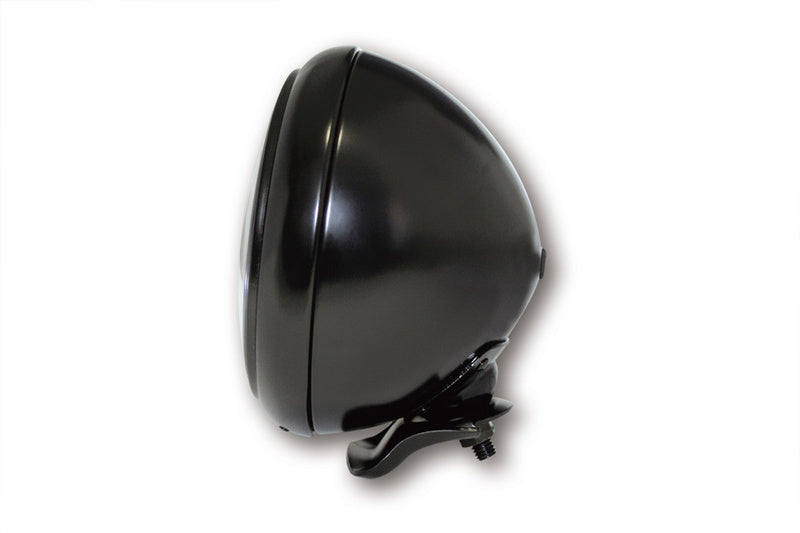

• Distance between the mounting holes on the bracket (center - center): 65 mm

Technical specifications:

• Power consumption at 12.5 Volt:
• Dispersion light: 1.4 Ampere (approx. 17.5 Watt), approx. 1170 lumen.
• High beam: 1.5 amperes (approx. 18.5 watts), approx. 1200 lumen.

Connectors, 3-pin combo plug:

• Black cable = Ground (-)
• White cable = Low beam (+)
• Yellow cable = High beam (+)
• Red extra cable = Parking light (+)

Supplied equipment: 1 piece

Notes:

• Symmetrical reflector - also approved for left-hand traffic.
• Replacement insert: Art.-Product No. 226-160
