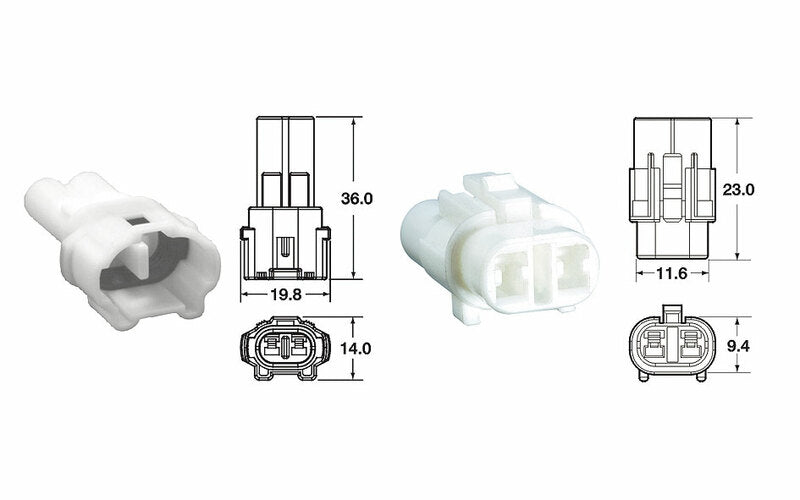

BIHR 2 plugs end set Connectors 090 SMTO series OE Type Ø0,85mm²/1,25mm² - 5 sets

Set of five complete connectors (units, locks, seals, terminals), sealed, same type as original manufacturer.

Technical specifications:

• Brass, pre-stamped male and female terminals.
• Silicone seals.
• Working temperature: -40 °C / +120 °C.
• Voltage drop: 3mV/A.
• Insulating resistor: 100MΩ.
• Dielectric resistor: 1000V.
• Wire diameter: 0,58mm ² / 1,25mm ².
• Maximum electric current: 13A.
• Type 090 SMTO MT
