DENALI Trigger Wizard - Universal High Beam Trigger for Ground Switched LED Headlights

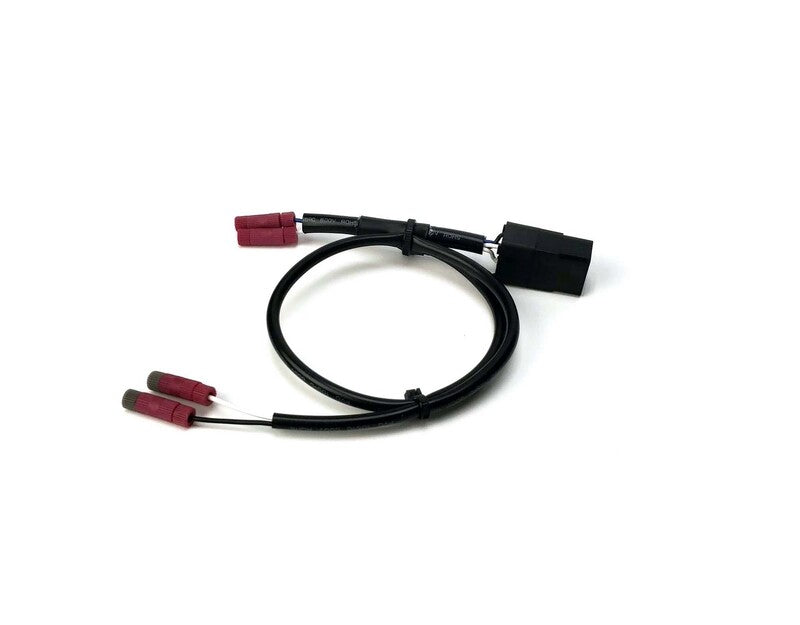

The long-awaited Trigger Wizard is a simple wiring adapter that converts a ground-switched vehicle high beam wire to a traditional high beam wire that outputs 12 volts when you turn on your high beam. This adapter is required if you want to output a 12v high beam signal that will allow DENALI lights to change intensity with your factory high beam switch.

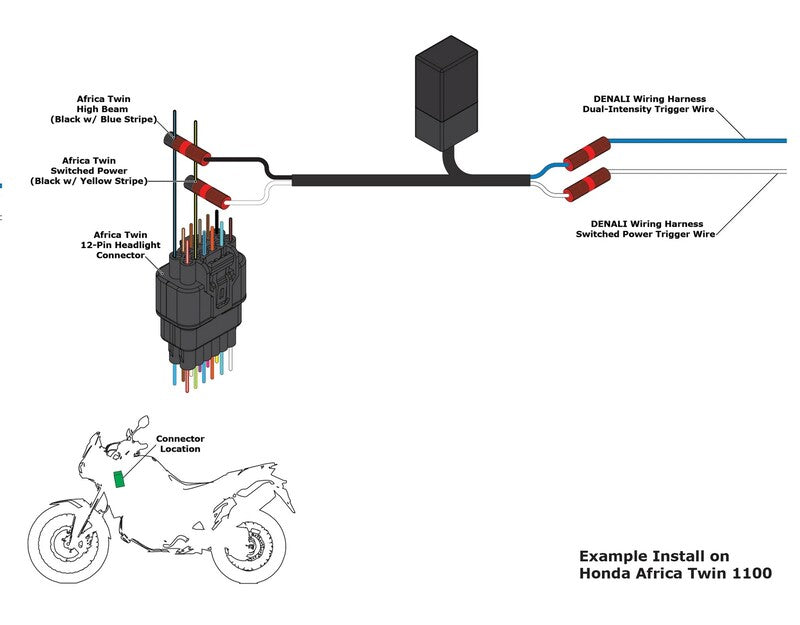

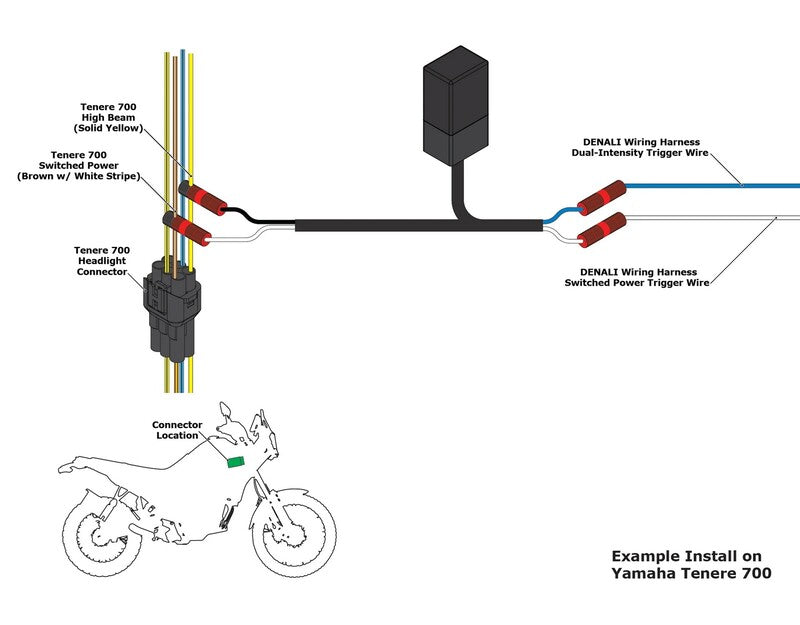

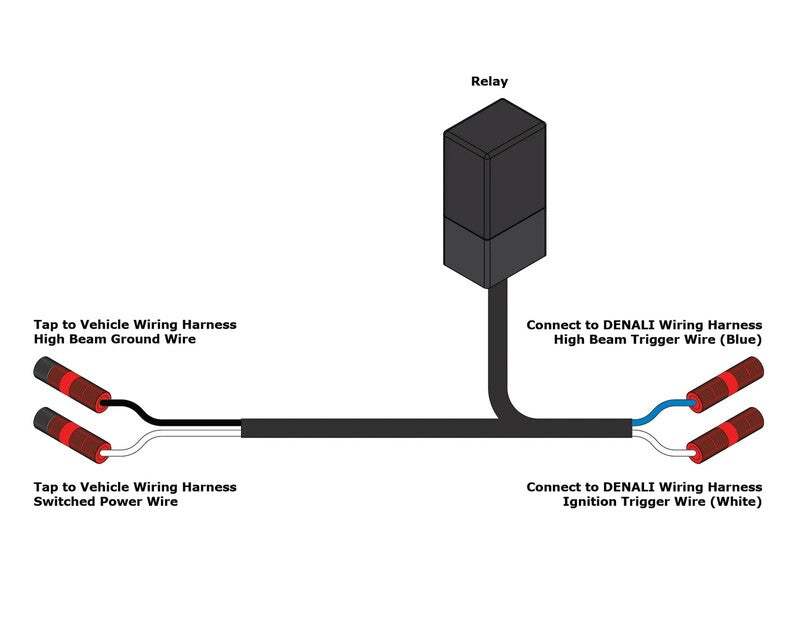

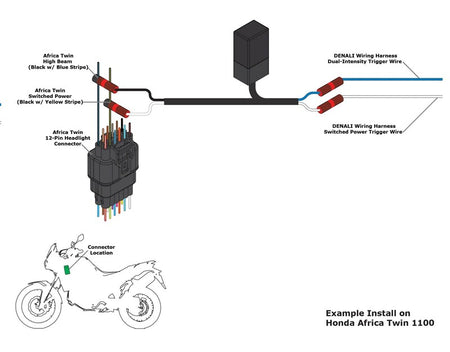

To install the Trigger Wizard, simply connect the white and blue ends to the color-coded DENALI wiring harness trigger wires and then connect the black and white leads to the vehicle high beam and switched power wires respectively.
