HIGHSIDER Main Headlight Insert LED Type 6 - 5 3/4"

HIGHSIDER 5 3/4 inch LED main headlamp unit Type 6, E-approved

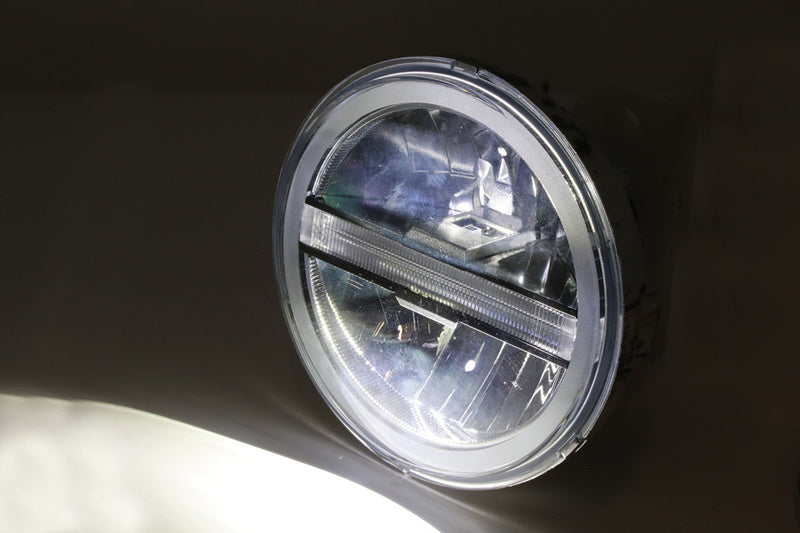

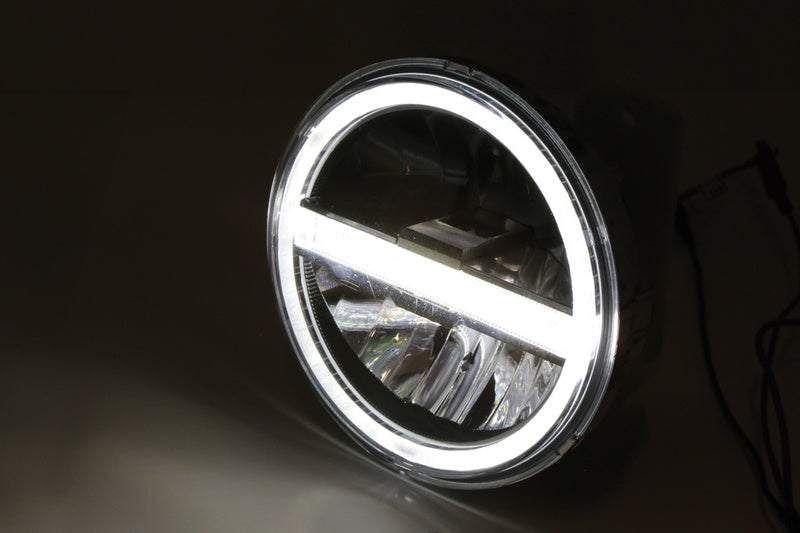

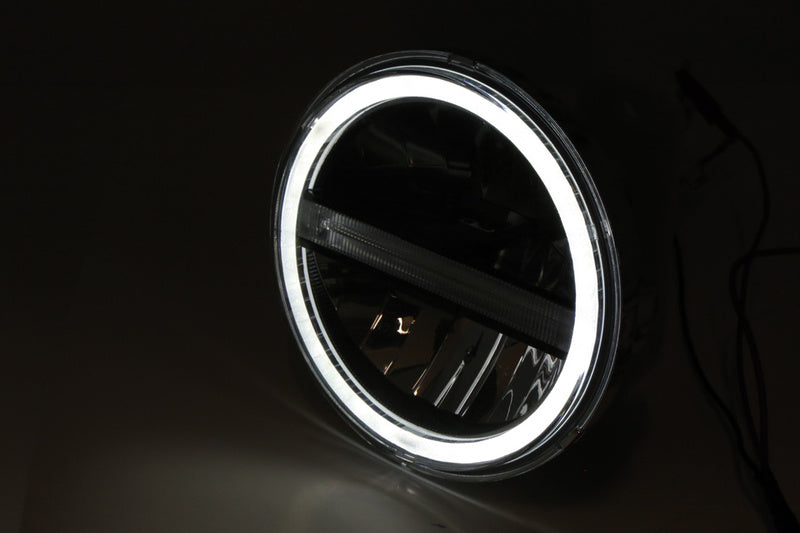

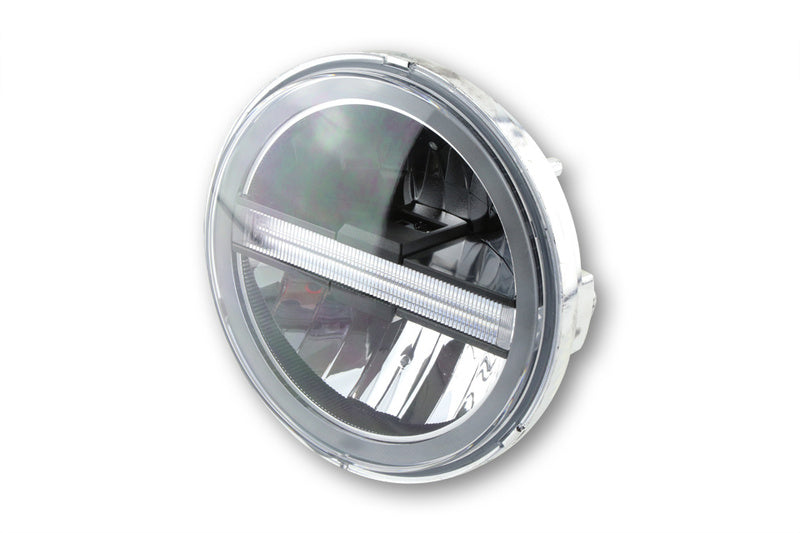

This round, chrome-plated reflector has high beam, low beam, daytime running light and a parking light ring. The daytime running light is located in the middle of the strip and the dipped beam is in the upper half of the insert. When the main beam is switched on, both halves light up.

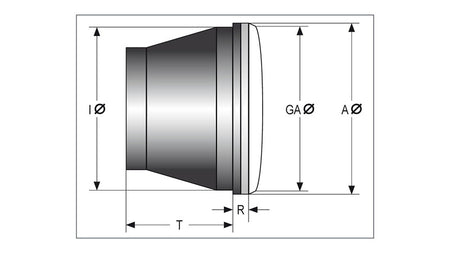

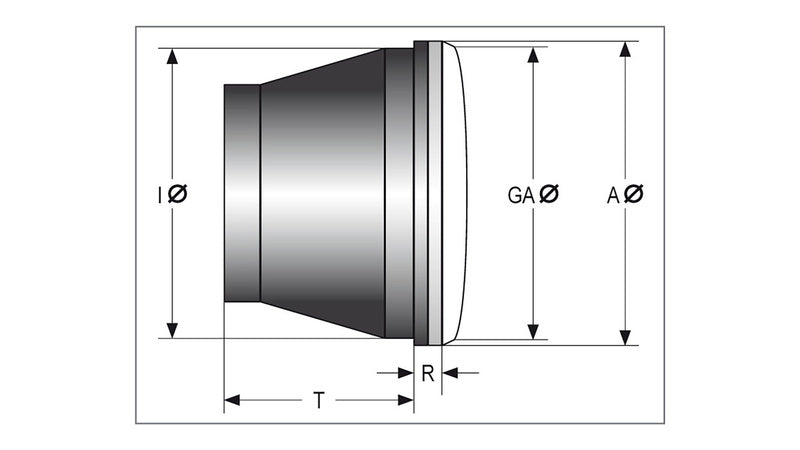

Dimensions:
Diameter A = 143 mm
Diameter GA = 133 mm
Diameter I = 131 mm, T = 70 mm, R = 13 mm
Cable length: 400 mm

Power consumption: (3 Pin connector)

Connections:
White = dipped beam (+)
Blue = main beam (+)
Green = ground (-)
Red = TFL/DRL (+) to ignition plus
Brown = position light (+)

Supplied: 1 piece incl. 1x plug housing

Note:
The daytime running light can also be used on vehicles without light switch. For this purpose, e. g. B. the following components are required:

– Order no. No.: 1107969 HIGHSIDER DRL CONTROL- BOX CB1 (switches between low beam and daytime running light)
