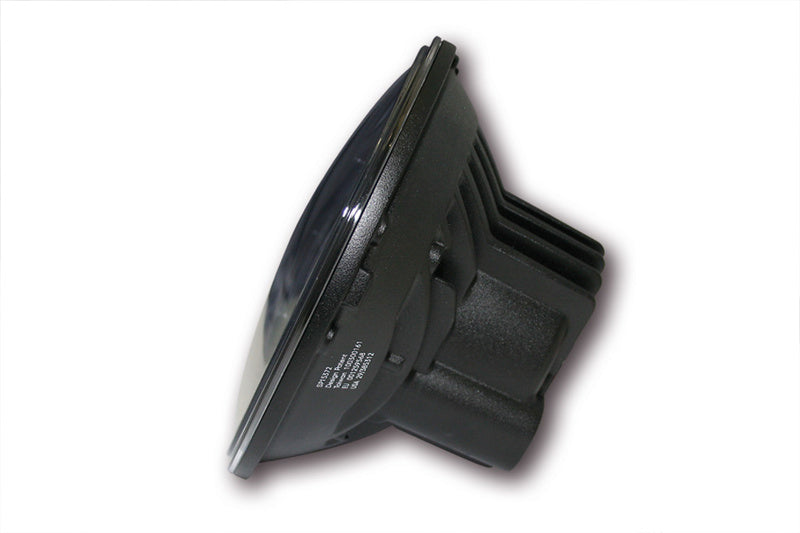

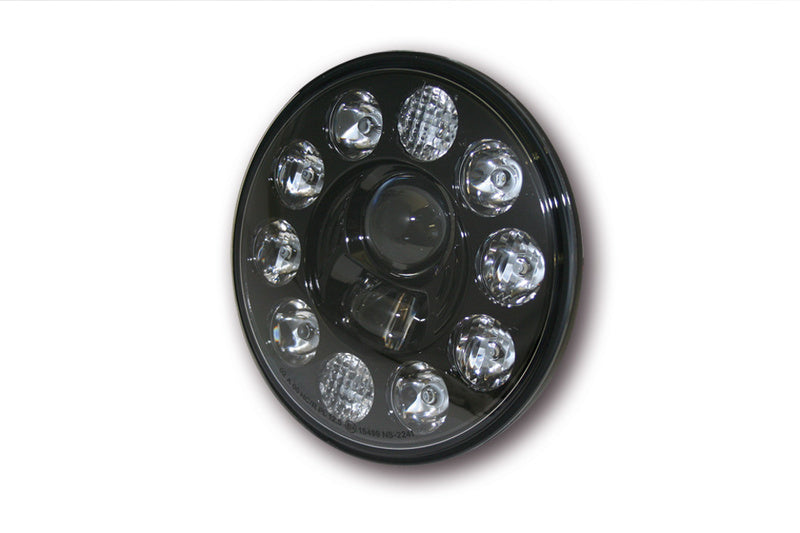

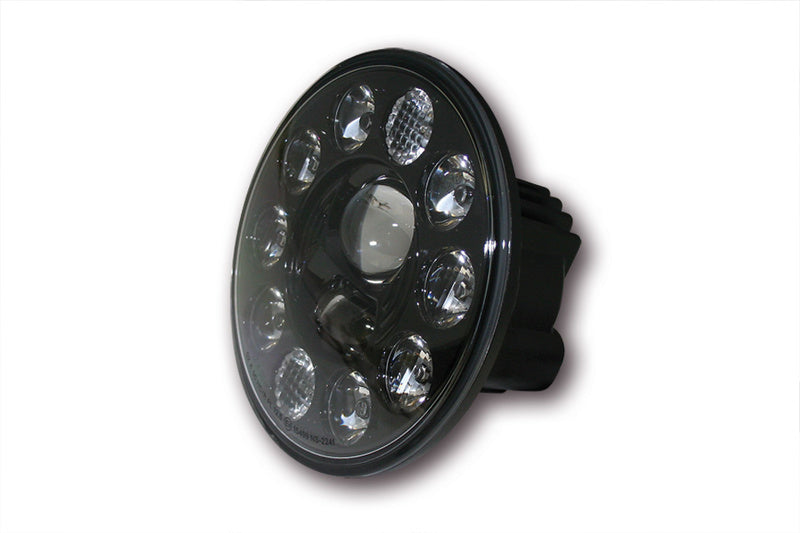

HIGHSIDER Main Headlight Insert Type 1 LED - 7"

HIGHSIDER 7″ LED Headlight Insert TYPE 1

This round, black or chrome reflector has high beam, low beam and parking light functions and emits an asymmetrical luminous flux – only approved for right-hand traffic – E-approved.

See and be seen Give your bike an unmistakable style!
The fancy design and the perfect technology of the HIGHSIDER headlight series make it a highlight!

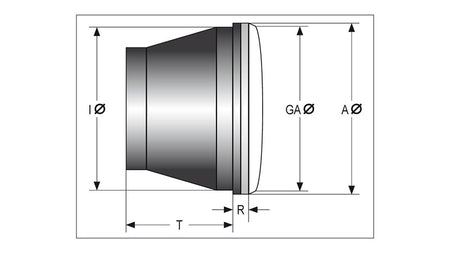

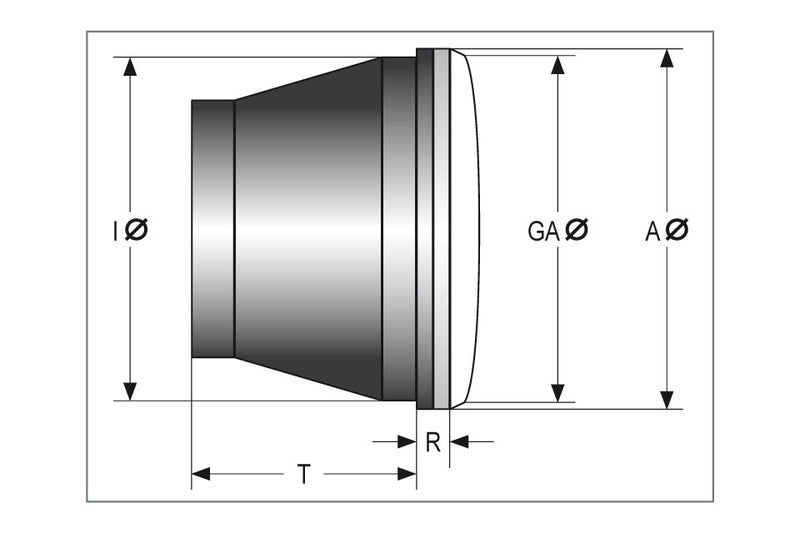

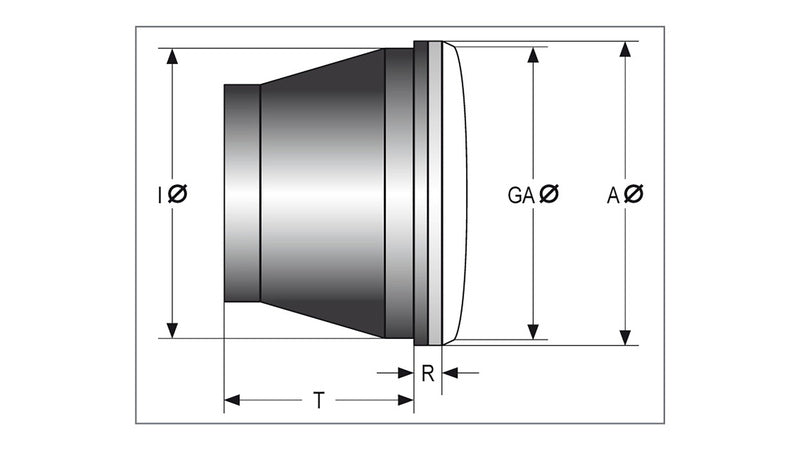

Dimensions :
Diameter A = 176 mm
Diameter GA = 168 mm
Diameter I = 161 mm
Diameter Heat sink K = 111 mm
T = 82 mm
R = 8,5 mm

Technical specifications:
Power consumption at 12,5 Volt DC:
Dipped beam: only 1,9 Ampere (approx. 23.75 watts).
12 volts 1069 lumens
Only the two inner ellipsoid inserts shine.

High beam: only 1.4 amperes (about 17.5 watts).
12 volts 1100 lumens
Only the outer LED circuit shines. When the headlight flasher is activated, all LEDs light up.

Connections:
The following 3 cables end in a combination plug:
Black = ground (-)
Red = plus high beam (+).
Blue = Plus low beam (+).
Additional 2 cables for parking light:
Black = Ground (-)
Red = Parking light (+)

Scope of supply: 1 piece

Notes:
Asymmetrical use, only approved for right-hand traffic.
The reflector can also be ordered complete with housing:
1108614001
1108614002
1108619001
1108578002
