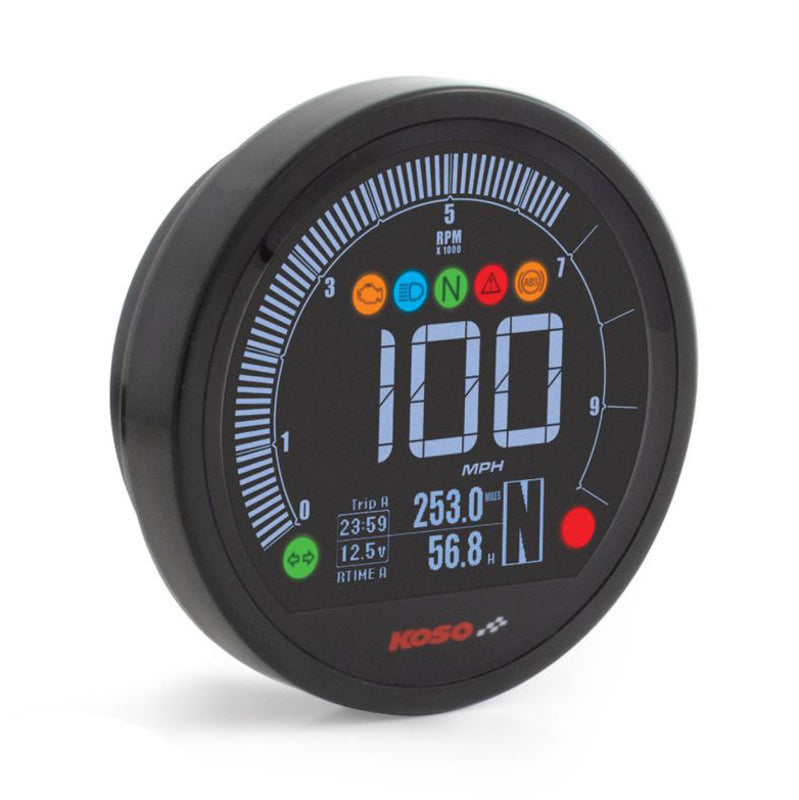

KOSO DL-04 Tachometer/Speedometer - BMW R Nine T

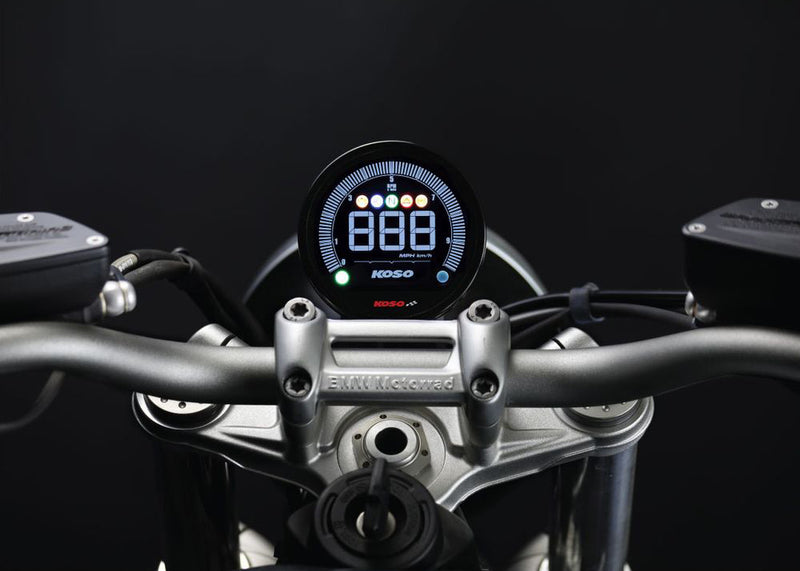

Vehicle-specific, digital rev counter DL-04 with speed display and that certain extra in black. Thanks to the matching plugs, a plug & play solution suitable for BMW R nineT®.

Product information DL-04 Meter:
Speedometer:
Display unit: 0 - 360 km/h (0-225 MPH) switchable
Display unit: 1 km/h (MPH)
Total odometer:
Display indication: 0 - 99.999 km (mile)
Display unit: 1 km (mile)
Trip meter:
Display: 0 - 9.999.9 km (mile)
Display unit: 0.1 km (mile)
Tripmeter O:
Range until oil change
Display indication: 0 - 9,999.9 km (mile)
Display unit: 0.1 km (mile)
Tripmeter A:
Range until service
Display: 0 - 9,999.9 km (mile)
Display unit: 0.1 km (mile)
Oil change interval:
Setting range: 3,000 - 16,000 km (300 - 10,000 mile)
Setting unit: 100 km (mile)
Gear indicator:
Display indication: N, 1 - 6
Maximum speed warning:
Setting range: 30 - 360 km/h (18 - 225 MPH)
Setting unit: 1 km/h (MPH)

Tachometer:
Display indication: 0 - 10,000 RPM / 0 -15,000 RPM
Tach warning light:
Setting range: 5,000 - 15,900 RPM
Setting unit: 100 RPM

Temperature:
Display reading: 0 - 250°C (32 - 482°F).
Temperature warning:
Setting range: 60 - 250°C (140 - 482°F)
Setting unit: 1°C (1°F)

Voltmeter:
Display indication: 8.0 - 18.0 V
Low voltage warning:
Setting range: 8.0 V - 12.5 V
Setting unit: 0.1 V

Operating hours counter:
Display unit: 0.0 - 9999.9 hours
Display unit: 0.1 hours (6 minutes)
Hour counter 1 - 2:
Display indication: 0.0 - 9999.9 hours
Display unit: 0.1 hours (6 minutes)
Low oil level indicator A:
Display indication: 0.0 - 9999.9 hours
Display unit: 0.1 hours (6 minutes)

Recording of maximum values:
Highest speed
Display unit: 0 - 360 km/h (0 - 225 MPH)
Highest speed
Display unit: 0 - 15,000 RPM
Highest temperature
Display indication: 0 - 250°C (32 - 482°F)
Highest voltage
Display indication: 8.0 - 18 V
Highest gear
Display indication: N / 1 - 6

Clock:
Setting range: 12/24 hour system
Background brightness:
Setting range: 1-5 (darkest) - 5-5 (brightest)

Voltage:
DC 12 V
Temperature range:
-10 - +60°C
Specifications:
JIS D 0203(S2)

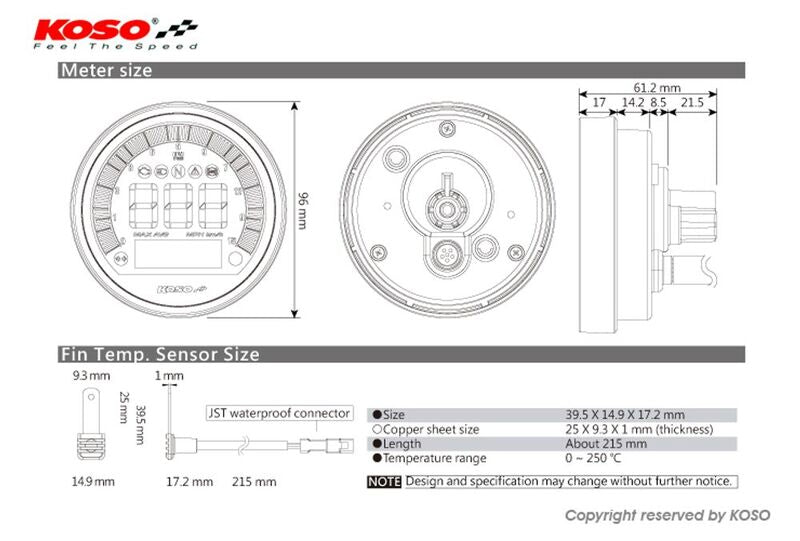

Size:
Diameter 96 mm
Weight:
approx. 194.5 g

Warning lights:
Indicator (green)
Engine control light (yellow)
High beam (blue)
Neutral (green)
Warning light (red)
ABS (yellow)
Speed flash (red)

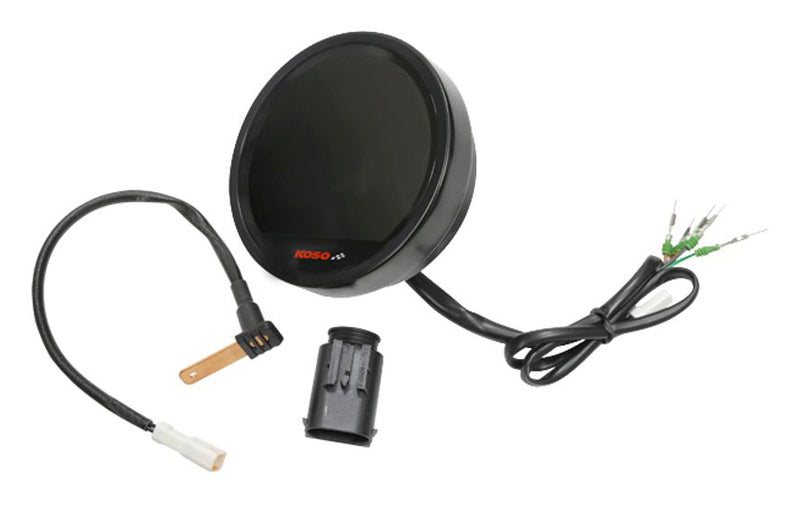

Scope of delivery: 1 piece
