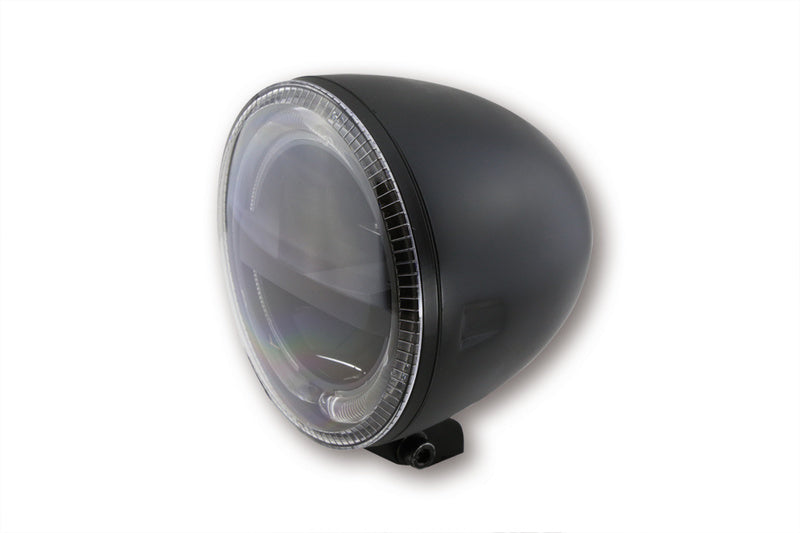

HIGHSIDER 5 3/4 inch LED headlight CIRCLE with DRL / PL, metal housing, lower mounting, E-approved. Available in different colours.
The Light Guide technology produces a very homogeneous light ring with daytime running and parking light function. The CIRCLE headlight comes in a high quality metal housing, either for the bottom or side mounting, in black or chrome.
The bright joy gives your bike a distinctive style! The fancy design and perfect technology of the HIGHSIDER headlight series make it a highlight in any case!
Dimensions:
- Diameter of headlight insert: 146.5 mm
- Depth: 167 mm with glass.
Fixing: bottom with M6 mounting screws.
Connections:
- 12,5 Volt DC
- 3 Connectors:
- Green Cable = Ground
- White Cable = Low Beam
- Blue Cable = High Beam
- Brown Cable = Parking Light
- Red Cable = Daytime Running Light
Supplied:
- 1 x main headlamp
- 2 x hexagon socket screws
- 2 x 4 mm washers
- 2 x 2mm washers
