HIGHSIDER Apollo LED Rear Light - Brake Light/Turn Signal

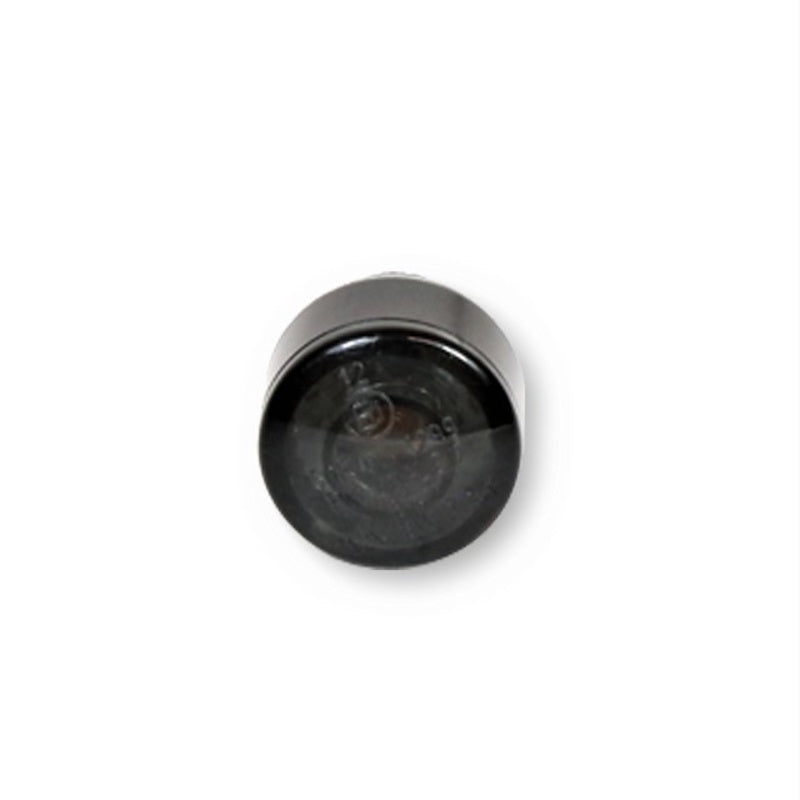

HIGHSIDER APOLLO LED tail light, brake light, turn signal module

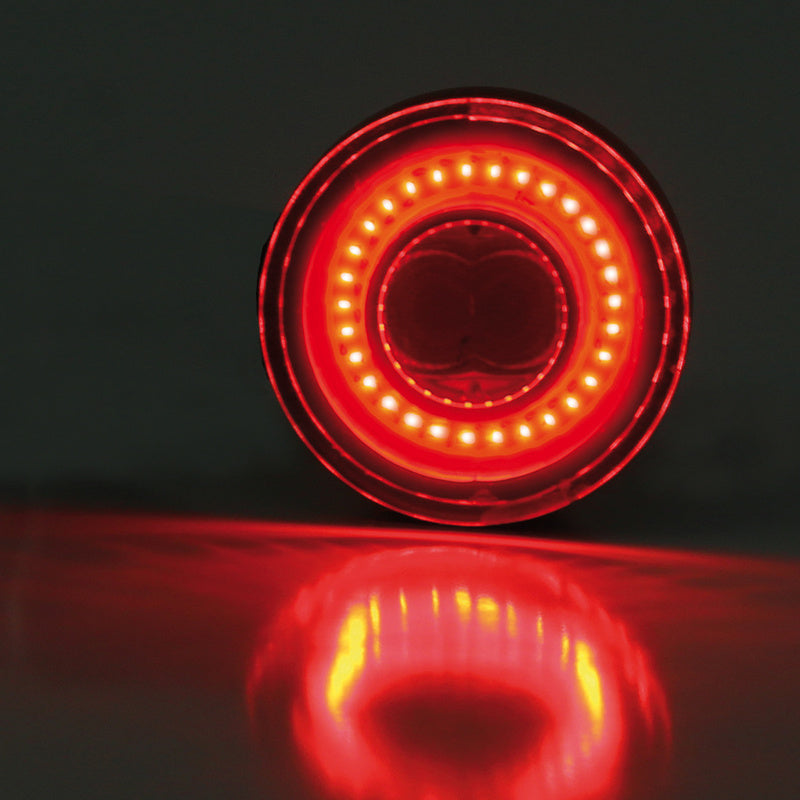

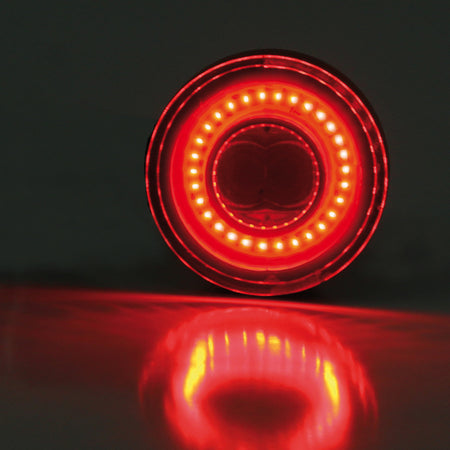

LED tail light, brake light, turn signal module suitable for recessed or surface mounting, black aluminium ring with tinted glass, E-tested. There are two very bright SMDs in the center. The outer ring consists of COBs (Chip On Board). With this technique, the semiconductor (without housing) is glued directly onto a printed circuit board. This module is supplied with a black anodised aluminium ring that fits over the base body.

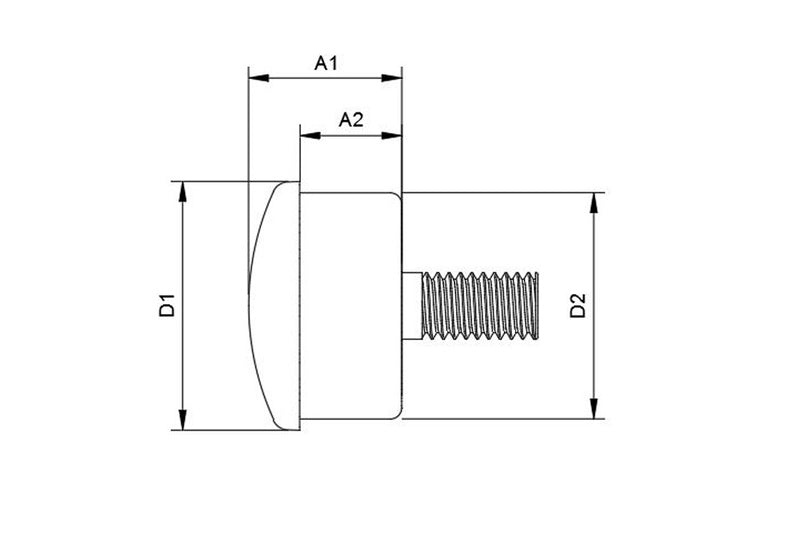

Dimensions:
A1: 13 mm
A2: 9 mm
D1: 22 mm
D2: 20 mm

Threaded bolts: M8, length 12 mm

Connections:
Black cable = mass (-)
Yellow cable = taillight (+)
Red cable = stoplight (+)
Blue = turn signal (+)

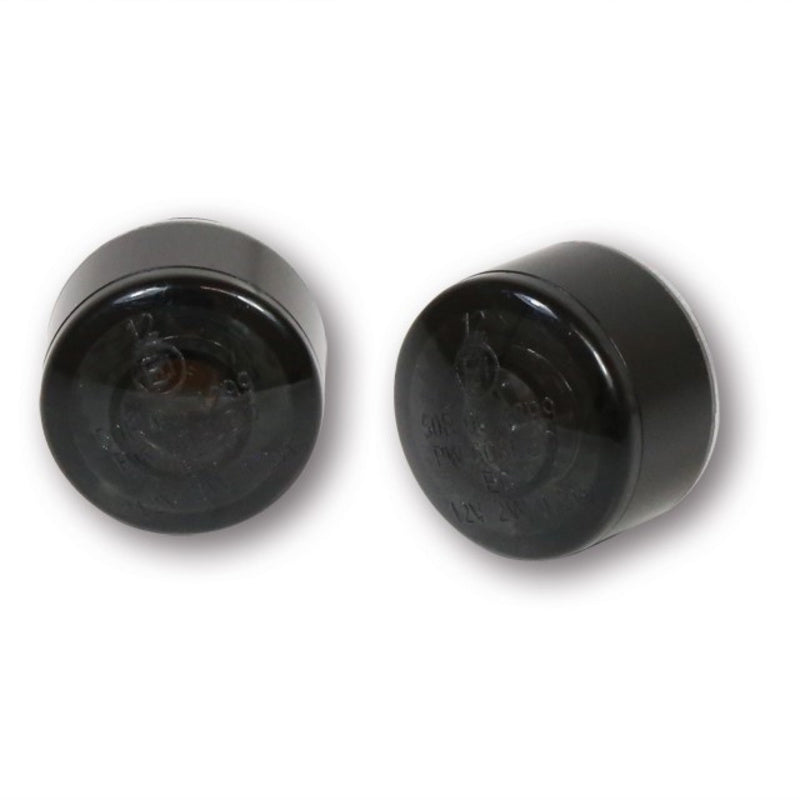

Scope of supply: 1 Pair
