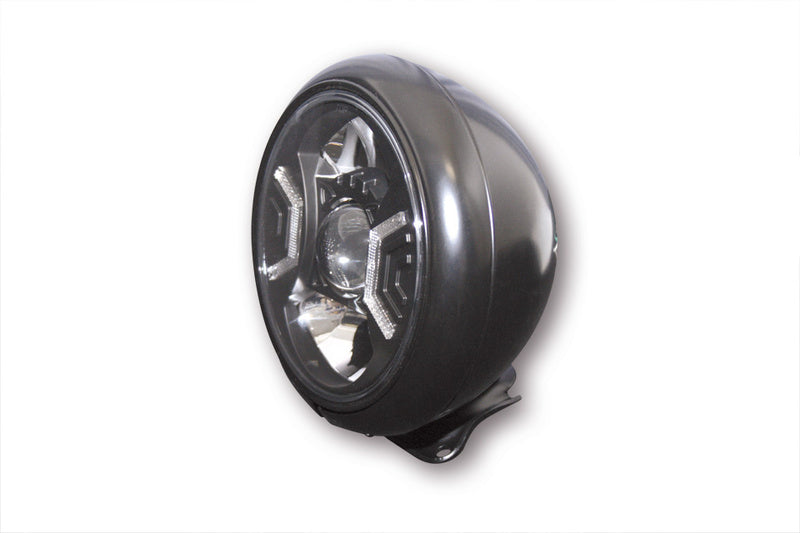

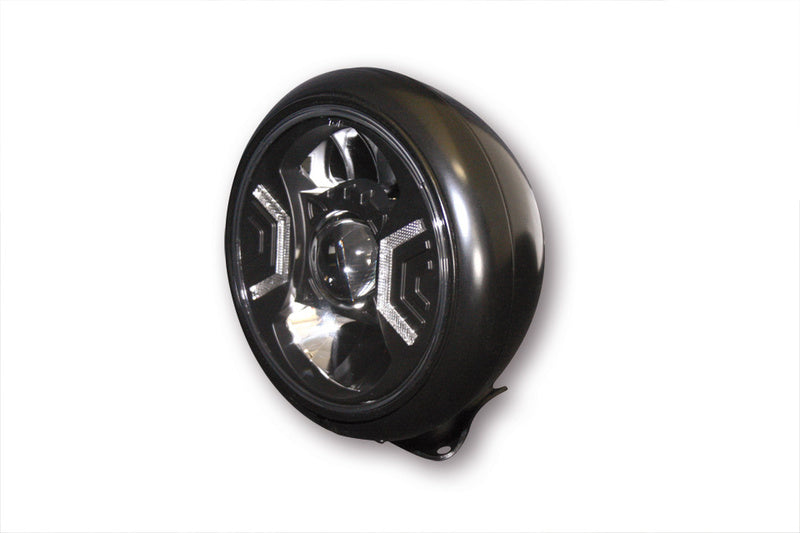

HIGHSIDER HD-Style Type 2 LED Headlight - 7"

HIGHSIDER HD-Style Type 2 Headlight LED 7"" - lower mounting

Stylish-innovative power LED floodlight in a puristic design with parking light function and a round, clear glass. The oval, satin-matt black or chrome metal case has a black or chrome-plated asymmetric – right-hand traffic only – insert, E-marked.

Dimensions:
Housing diameter: 220 mm
Headlight insert diameter: 178 mm
Depth: 155 mm
Distance of the mounting holes on the holder (middle – middle): 65 mm

Power consumption at 12,5 Volt DC:

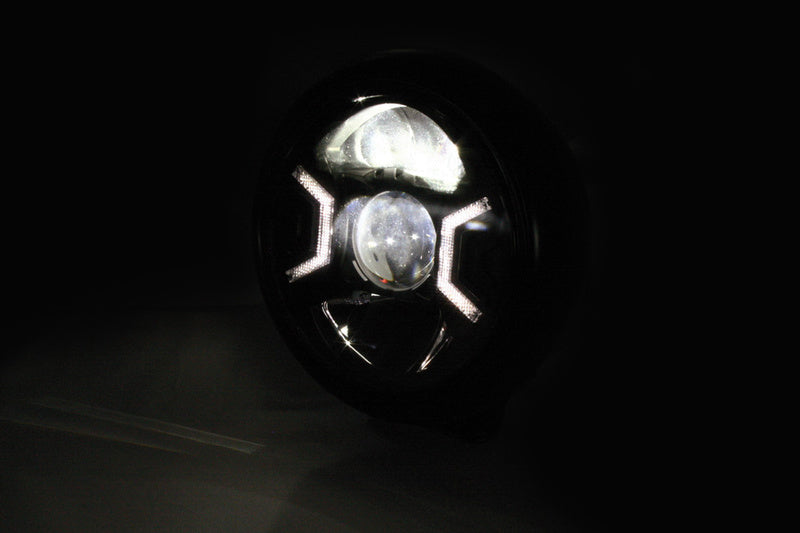

Dispersion light: approx. 1.6 ampere (20 watts), 12 volts 1450 lumen
Only the upper reflector and the middle ellipsoid insert are illuminated.

High beam: approx. 1.6 ampere (20 watts), 12 volts 1582 lumen
Only the upper and lower reflectors are illuminated. The middle ellipsoid insert also stops when the headlight flashes.

Connections on the reflector in the headlight housing

The following 3 cables end in a combination plug:
Black cable = Ground (-)
Red cable = High beam (+)
Blue cable = Low beam (+)

Additional 2 cables for parking light:
Black = ground (-),

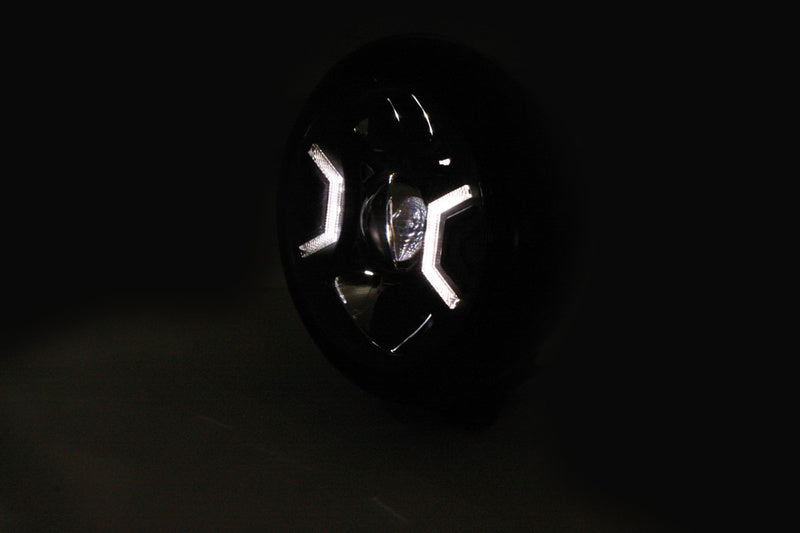

Red = parking light (+)
White= connection f. Control indicator (can be used optionally)

Scope of supply: 1 piece including mating connector (connecting plug) with 210 mm cable, for H4 halogen bulbs, connections:
Green cable = ground (-)
Blue cable = high beam (+)
White cable = low beam (+)
