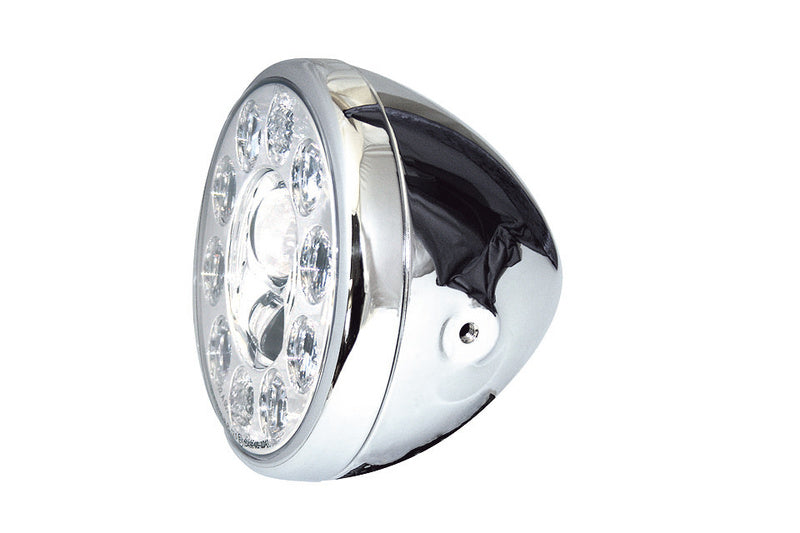

HIGHSIDER 7 Inch LED Spot Light Reno Type1 - 1108614002

HIGHSIDER 7 inch LED headlight RENO TYPE 1 for side mounting. Innovative power LED headlight with parking light and round, clear glass. The metal housing is painted high-gloss black or chrome-plated and has a chrome-plated, asymmetrical - only approved for right-hand traffic - insert, E-approved.

Our highlights - give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series make it a highlight every time!

Headlight dimensions:

• Housing diameter: 200 mm
• Headlight insert diameter: 178 mm
• Housing depth: 160 mm
• Distance between mounting holes (centre - centre): 170 mm
• Distance of fixing hole (centre) to housing

Technical specifications:

• Current consumption at 12.5 volts DC:
• Low beam: only 1.9 amps (approx. 23.75 watts).
• 12 volts 1069 lumens
• Only the two inner ellipsoid inserts are illuminated.
• High beam: only 1.4 amps (approx. 17.5 watts).
• 12 volts 1100 lumens
• Only the outer LED circle lights up. When the headlight flasher is activated, all LEDs light up.

Connections on the reflector in the headlamp housing:

• Black cable = ground (-)
• Red cable = high beam (+)
• Blue cable = low beam (+)
• Additional 2 cables for parking light: Black = ground (-), red = parking light (+)

Coupling connector connections::

• Green cable = ground (-)
• Blue cable = high beam (+)
• White cable = low beam (+)

Scope of delivery: 1 piece including connection plug with 210 mm cable, for H4 halogen bulbs

Notice: Asymmetrical reflector - only approved for right-hand traffic.
