HIGHSIDER Reno Type 2 Headlight LED - 7"

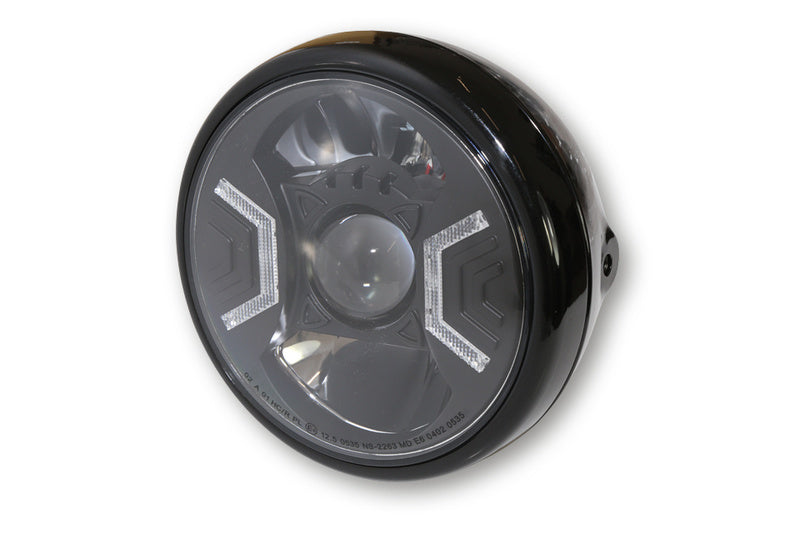

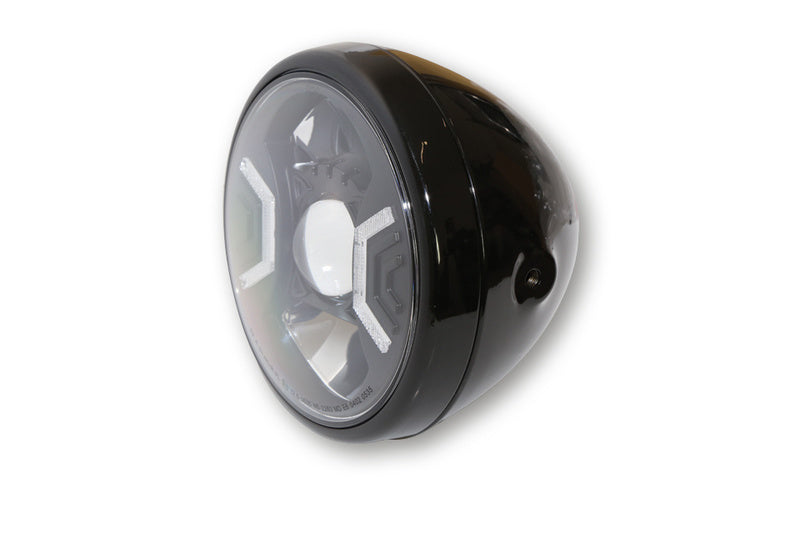

HIGHSIDER 7 inch LED headlight RENO TYPE 2 for side mounting

Innovative Power-LED headlight with parking light function and round, clear glass. The metal housing ishigh-gloss black lacquered and has a black, asymmetrical insert – approved for right-hand traffic only – or the housing is chrome-plated and has achrome-plated, asymmetrical – only approved for right-hand traffic. E-approved.

dimensions headlight:
Housing diameter: 200 mm
Diameter of headlight insert: 178 mm
Housing depth: 160 mm
Distance of the mounting holes (middle – middle): 170 mm
Distance mounting hole (middle) to end of housing: approx. 90 mm
Mounting: laterally with M8 threaded bolt

Current consumption at 12.5 Volt DC:

Dipped beam: approx. 1.6 Ampere (20 Watt).
12 Volt 1450 Lumen

High beam: approx. 1.6 Ampere (20 Watt).
12 Volt 1582 Lumen

Connectors on reflectorin headlamp housing:
Black cable = ground (-)
Red cable = high beam (+)
Blue cable = low beam (+)
Additional 2 cables for parking light: Black = ground (-), red = parking light(+)

Scope of delivery: 1 piece including mating connector (connection plug) with 210 mm cable, for H4 halogen bulbs, connections:
Green cable = ground (-)
Blue cable = high beam (+)
White cable =Dipped beam (+)

Note:
Application asymmetrical, approved for right-hand traffic only.
