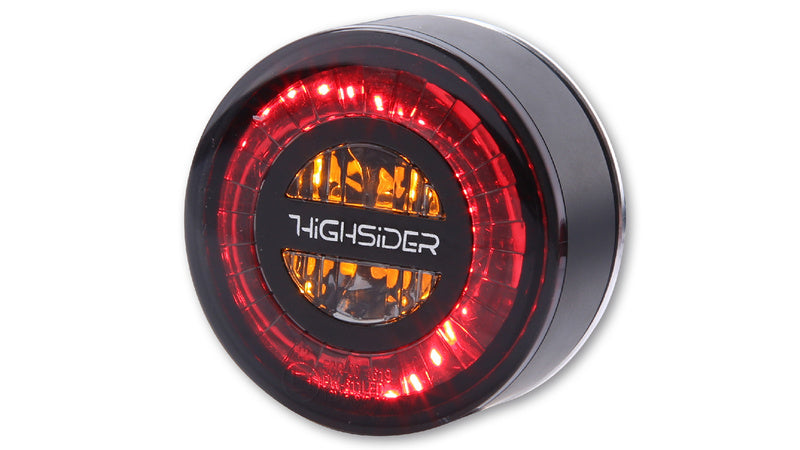

HIGHSIDER Rocket LED Rear Light - Brake Light/Turn Signal

HIGHSIDER Rocket module 3in1 LED Rear light, brake light, turn signal, for rear E-approved.

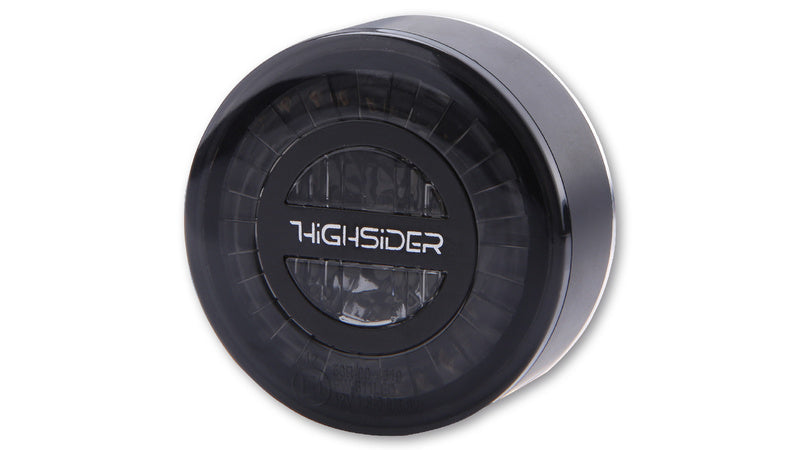

- Suitable for recessed or surface mounting - with black aluminium ring and tinted glass

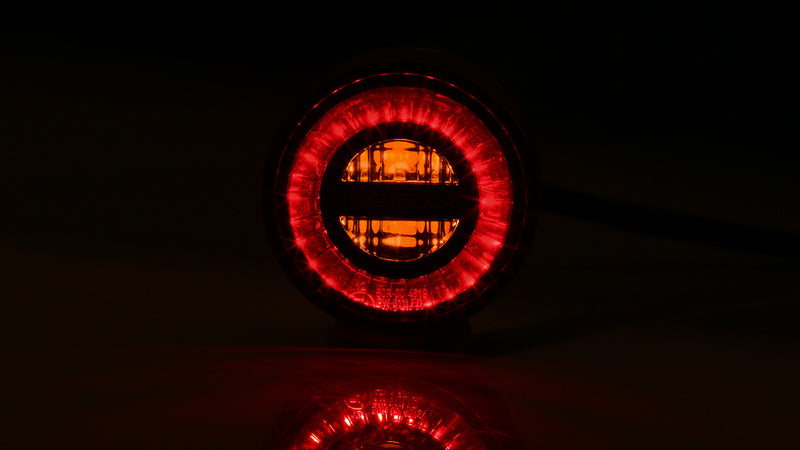

In the center are 6 very bright SMD LEDs installed. The outer ring consists of COBs (Chip On Board). Thanks to the new LED chip embedding for high-power LEDs, a very high luminance can be achieved with currently the best possible efficiency and service life.
In addition, higher light values can be achieved than with conventional LEDs. This combination comes with a black anodized aluminum ring that fits over the base body.

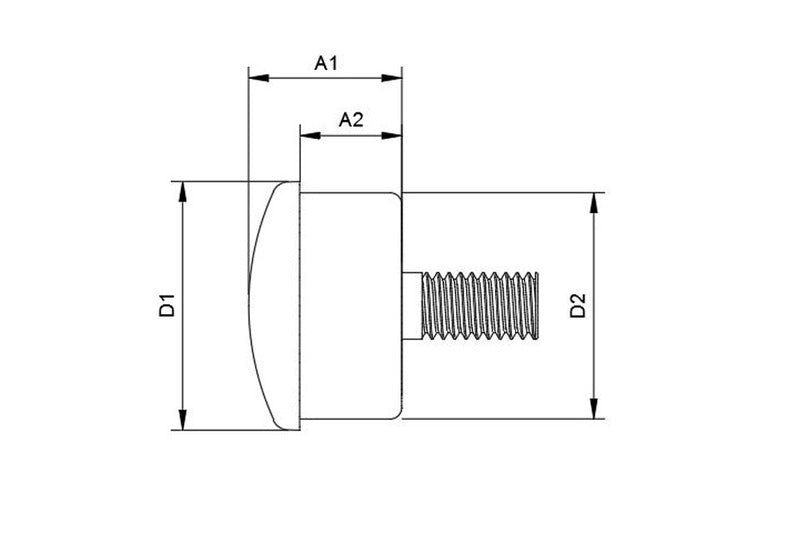

Dimensions
A: Depth: 14 mm
B: Diameter: 45 mm (with alloy ring)
Depth: 10 mm
Diameter: 40 mm (without alloy ring)

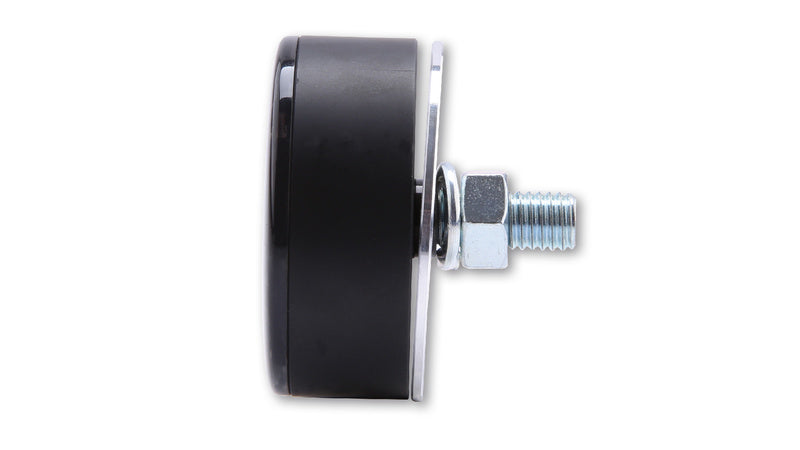

Mounting bolt: M8 x 1.25 mm x length 18 mm

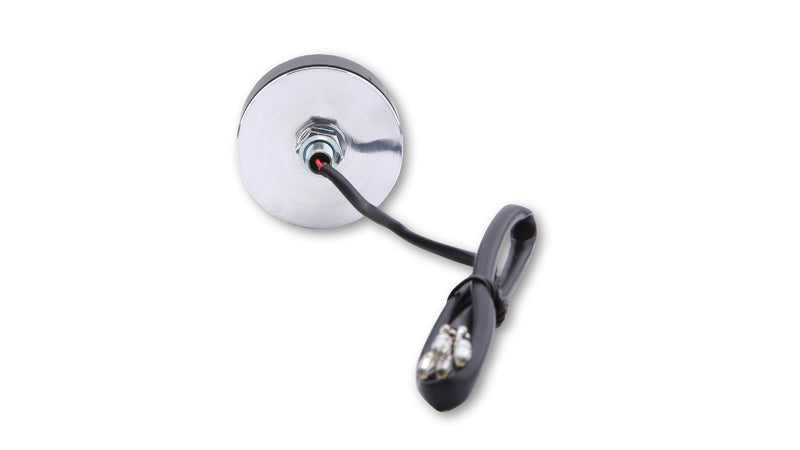

Connections:
Black cable = ground (-)
Yellow cable = tail light (+)
Red cable = brake light (+)
Blue = turn signal (+)

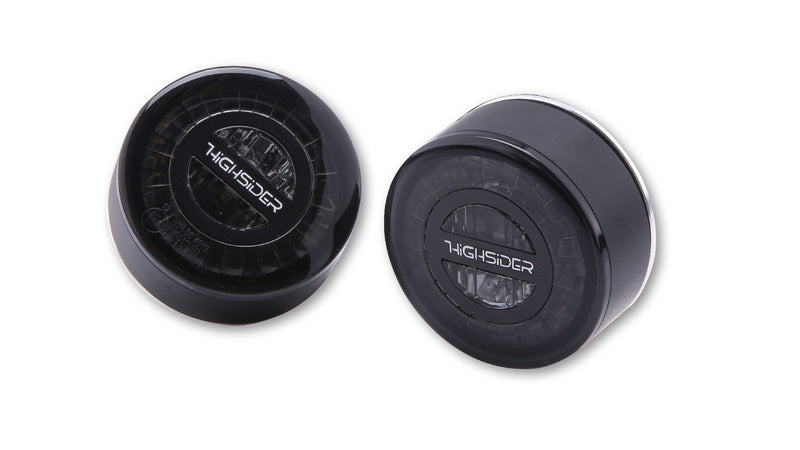

Scope of delivery: 1 pair
